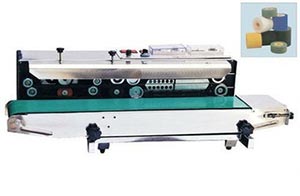

Automatic Continuous Sealing Machine

automatic-continuous-sealing-machineAutomatic Continuous Sealing Machine is used to seal small bag and it applys electronic constant temperature controlling system and stepless speed regulation. It can seal plastic films of various materials. This machine adopts steel-roller coding device or ink-roller coding, which can print the desired date simultaneously with sealing. With the characters clear and conspicuous, the colors are selectable, not easy to erase and changeless. Coding is instant printing and instant dry.



HYPH-FK1 HYPH-FK2
Voltage (V/Hz) AC 220/50 110/60
Motor power (W) 50
Galvanother my power(W) 300×2
Sealing speed(m/min) 0-12 (0-16)
Sealing width(mm) 8 -10
Temperature range(°C) 0-300
Coding type Steel roller coding(can choose)
Distance from sealing center to conveyor(mm) 10-40 150-270
Conveyor size (L×W)(mm) 840×153
Maximum conveyor loading for single bag(kg) ≤1
Overall conveyor loading(kg) ≤3
Dimension (L×W×H)(mm) 840×380×320 840×380×550
Net weight (kg) 32 37
