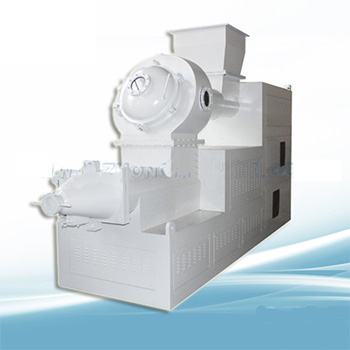

Soap Double-Layer Double-Screw Vacuum Plodder

Soap Double-Layer Double-Screw Vacuum PlodderTechnical Parameters:
Material: Carbon steel/ Parts touched the soap are made of SS 304;
Capacity: 500/1000-2000/2000-3000/3000-3500 kg/hr;
Screw Diameter: Φ 200 mm x 1 / Φ 230 mm x 2 / Φ 250 mm x 2 / Φ 300 mm x 2;
Power: top: 5.5 kW, bottom: 7.5 kW (adjustable) / top: 11 kW, bottom: 15 kW (adjustable) / top: 15 kW, bottom: 22 kW (adjustable) / top: 18.5 kW, bottom: 30 kW (adjustable).








The above and below screws and two orifice plates press and refine the soap material and make the soap bar tight and the surface bright. The below screw’s speed is adjustable to regulate the production capacity. The vacuum pump vacuumizes the soap materials, and the soap is not easy to crack. The vacuum chamber has a vision glass to watch the inner, the vacuum meter tests the vacuum degree. The heater inside the outlet adopt automatic temperature control system. The jackets of the above and below barrels are connected to a circulating water source. The motor and the reducer are separated, for long life-span and maintenance.
