Effluent Treatment System Station

The waste water has high organic matter content, biochemical oxygen demand BOD is about 25000ppm, required by qualified deal before emissions. Pool sewage treatment system is the most used and effective treatment. This palm oil mill effluent treatment system is cost-effective, only needs adequate space, less investment costs.       The equipment list of

Raw Water Treatment Station

Water consumption of the palm oil factory include: furnace feeding water, generator cooling water, production and living water, Only the after treated supply water can meet the sanitary requirement. Especially, the furnace supply water should be softened first, After anion and cation exchange resin treatment, meet the requirements of the boiler water, then be treated

Power-supply Station

Generally speaking, palm oil factory commonly be set in the palm orchard far away from the city, Power supply capacity is low. So, power-supply should be consider independently, build a captive power plant to meet the electricity needs of the palm oil factory which mainly determined by the electricity-consumption of equipment and auxiliary equipment. In

Steam-supply Station

The fuel of the boiler is fiber, Part of the steam out from the furnace supply to the turbine generator. The rest of the steam for equipment-running supply.                   The equipment list of boiler house: 1.Steam Boiler 2.Back Pressur Vessel c/w Platform 3.Back Pressure Vessel Control System

Nut&Kernel Separation Station

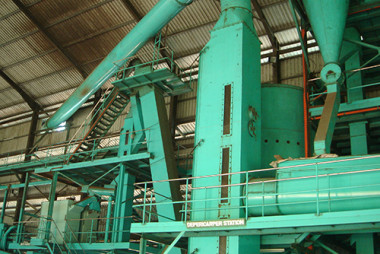

Nut&Kernel Separation Station

Firstly, the wet fiber and wet nut enter the cake breaker conveyor to be cracked, and mostly of the fiber should be separated by pneumatic fiber depericarper System. The nut, little fiber and big impurity will be further separated by the polishing drum. The separated nut should be sent to nut hopper through the pneumatic

Palm Kernel Recovery Station

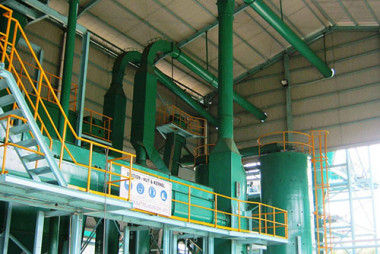

Palm Kernel Recovery Station

Palm kernel recovery station assures high efficiency recovery process of palm kernel after palm oil pressing processing line. It prepares for further step palm kernel oil pressing process after splitter and crushing. Depericarper (splitter). Palm kernel separates from fibers through floating dry processing during crude palm oil processing machine. Fibers and other light stuff are

Crude Oil Storage Tank

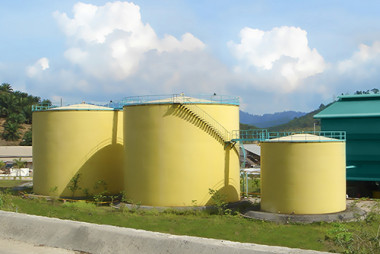

Crude Oil Storage Tank

Oil storage tank is mainly used as a crude palm oil (CPO) storage tank during palm oil process. It guarantees a certain storage temperature and good sealing. It is useful for temporary storage of crude palm oil. Technical data of oil storage tank: Oil tank volume: 2000T Diameter: 19m Tank height: 11m

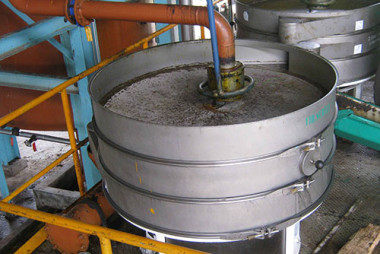

Palm Oil Clarification Station

Clarification station can extract crude palm oil from sludge. The obtained crude palm oil purity can reach up 90%. The extraction oil contains 45%-55% moisture, sludge and other impurities. Purification: crude palm oil purification can improve oil purity and remove impurity successfully. Drying: Continuous Vacuum drier pumps water from crude palm oil. Palm oil moisture

Palm oil mil process of pressing

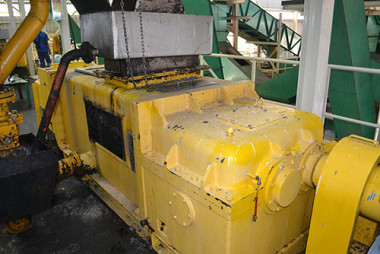

Palm Oil Pressing Station

Because of cooking, sterilizing, threshing and mashing made the pulp soft and damage pulp cell structure, the palm pulp becomes soft and cell is broken. Then it is sent to continuous screw press. After pressing, oil palm fruit is divided into two parts: the mixture of oil, water and solid impurities, and the press cake

Palm oil mil process of threshing

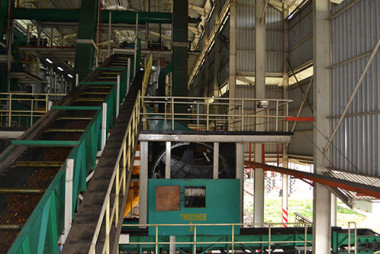

Threshing Station

Threshing station uses strong vibration to make separation of palm fruit from palm bunches. Raw materials after sterilization are sent to bucket elevator through damp car, and elevated into threshing machine. Palm fruit separates from bunches, sent to next section elevator through screw conveyor. Empty bunches through conveyor and charger, are transported to certain place
